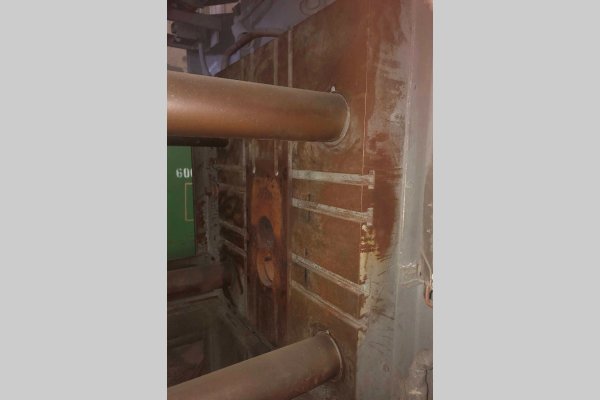

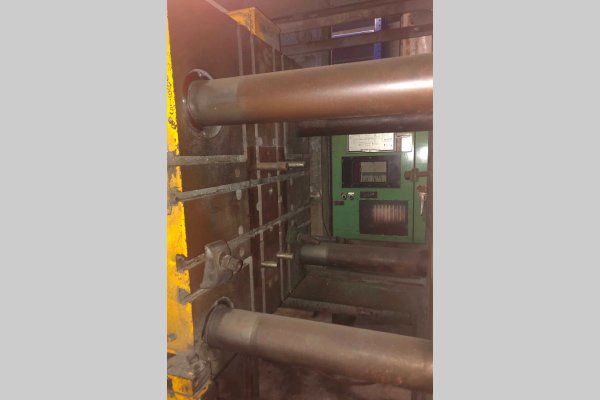

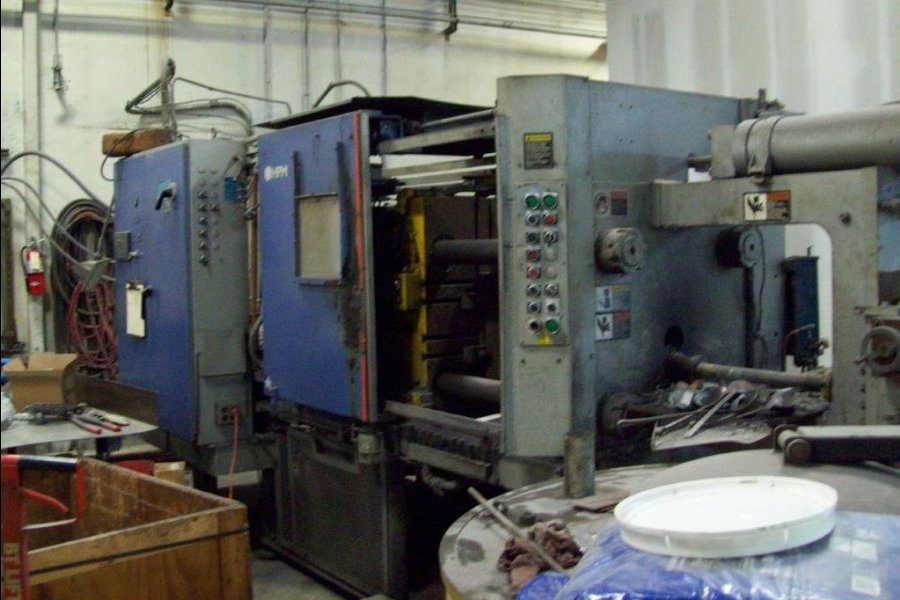

Used HPM Model: U-200-A 200 U.S. Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine


Print PDF

Status: Sold - View Available

We offer for sale, subject to availability, prior sale and the terms listed below:

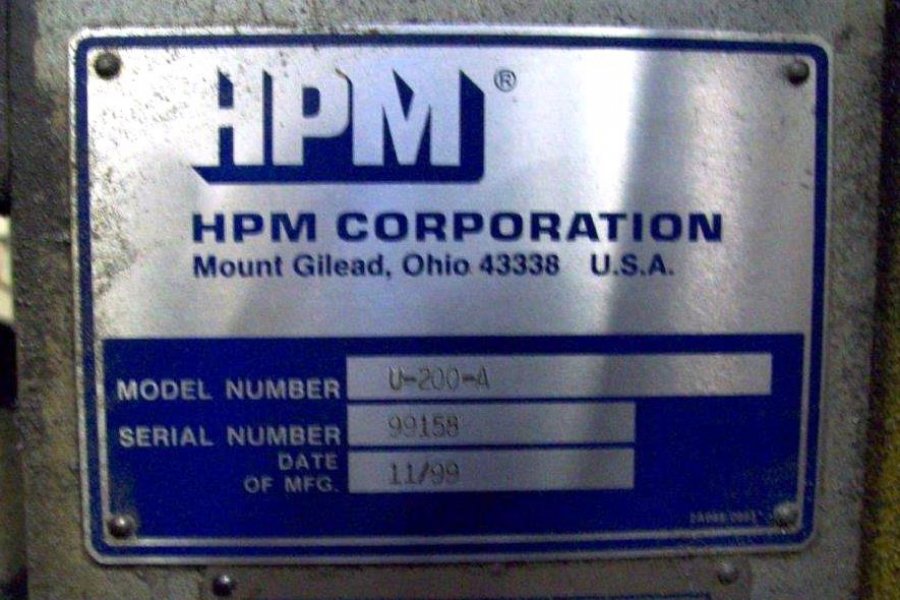

Manufacturer: HPM

Model: U-200-A

Size: 200 U.S. Tons

Inventory Number: DCM-5255

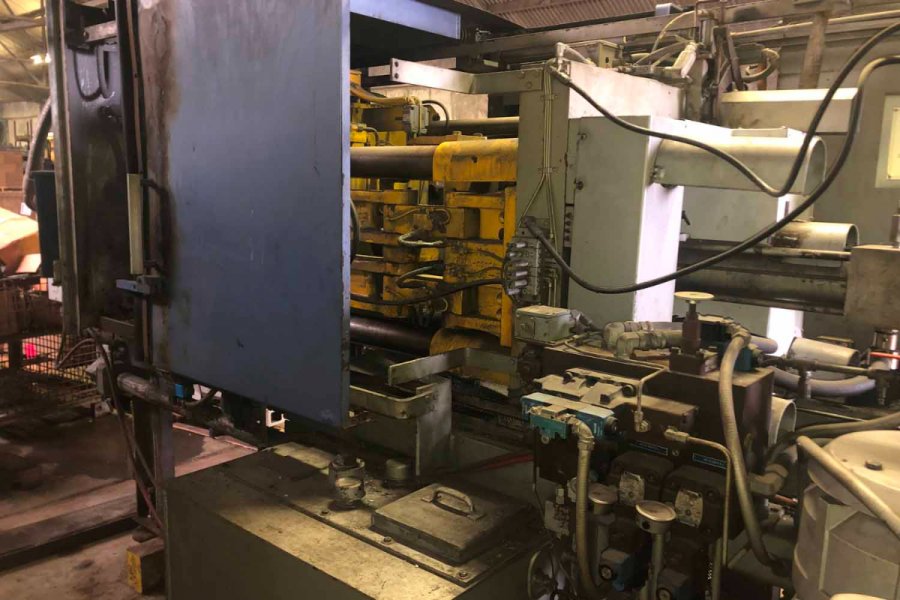

Used HPM Model: U-200-A 200 U.S. Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine.

Features & Accessories:

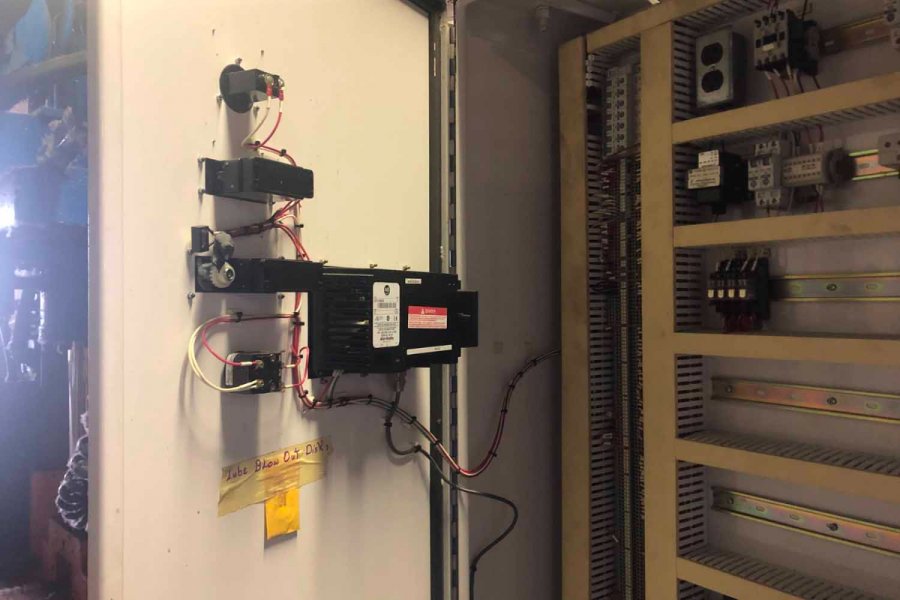

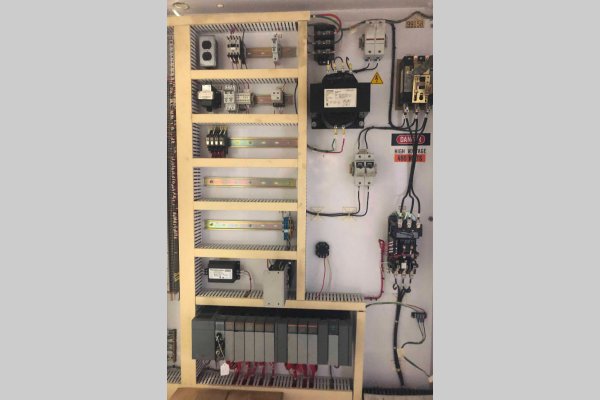

  • New in 1999 - Equipped with Allen Bradley SLC 5/03 Solid State Controls with PanelView550 HMI

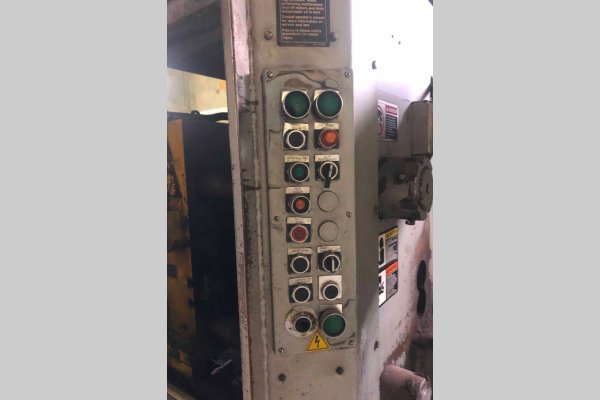

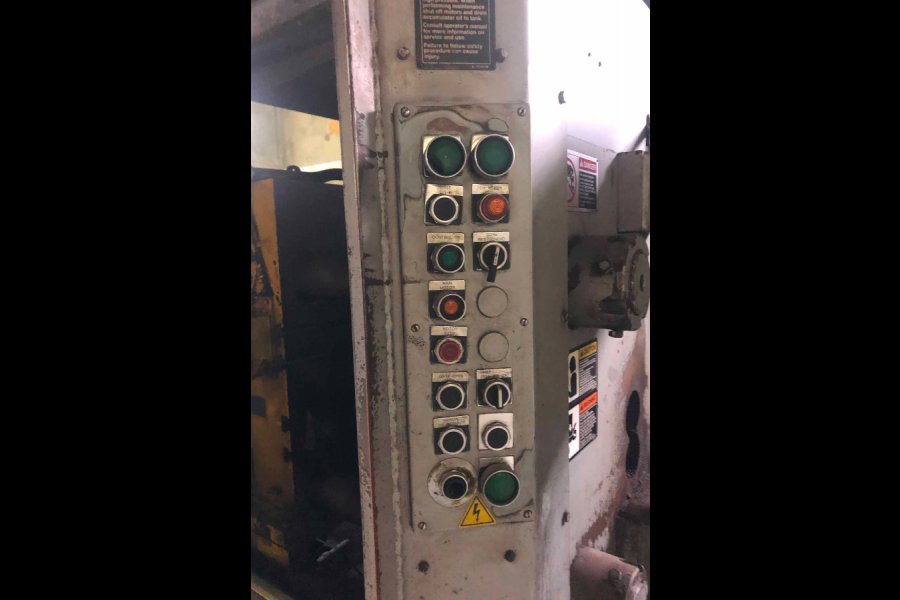

  • Safety Ratchet Device, Manual Operator & Helper Safety Door

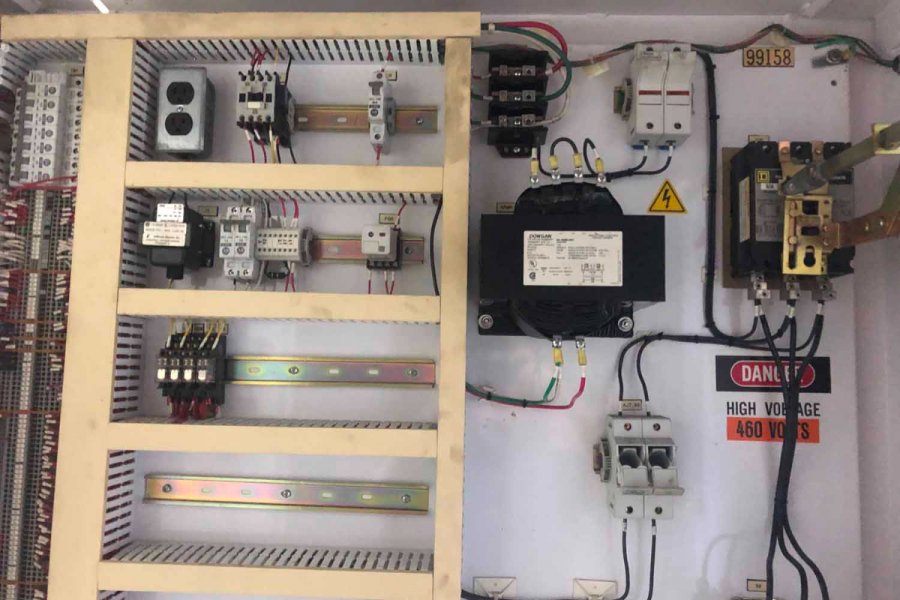

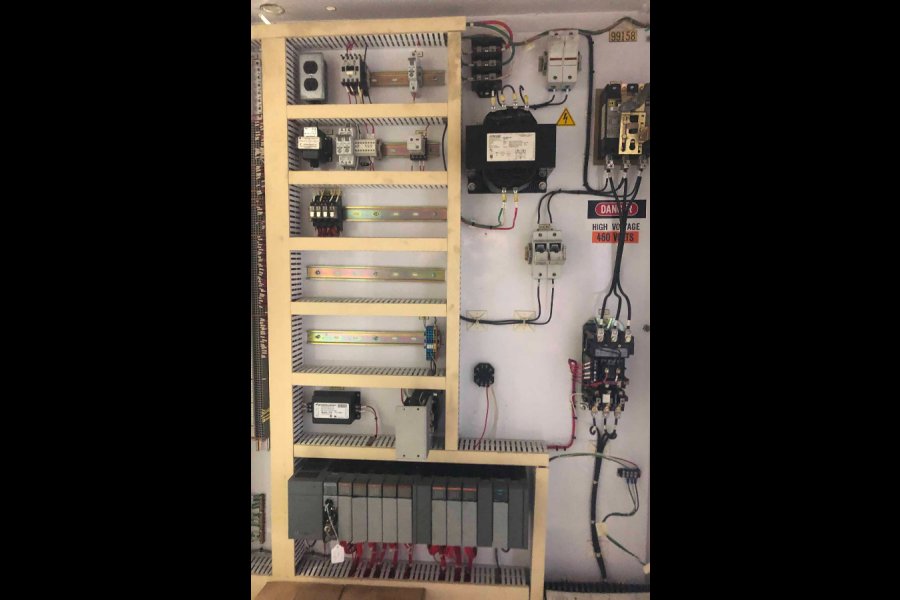

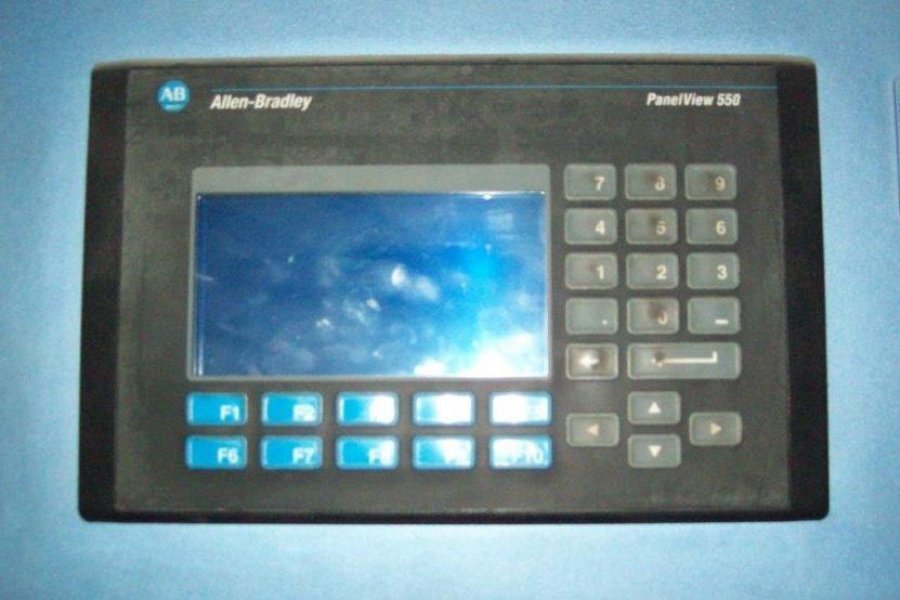

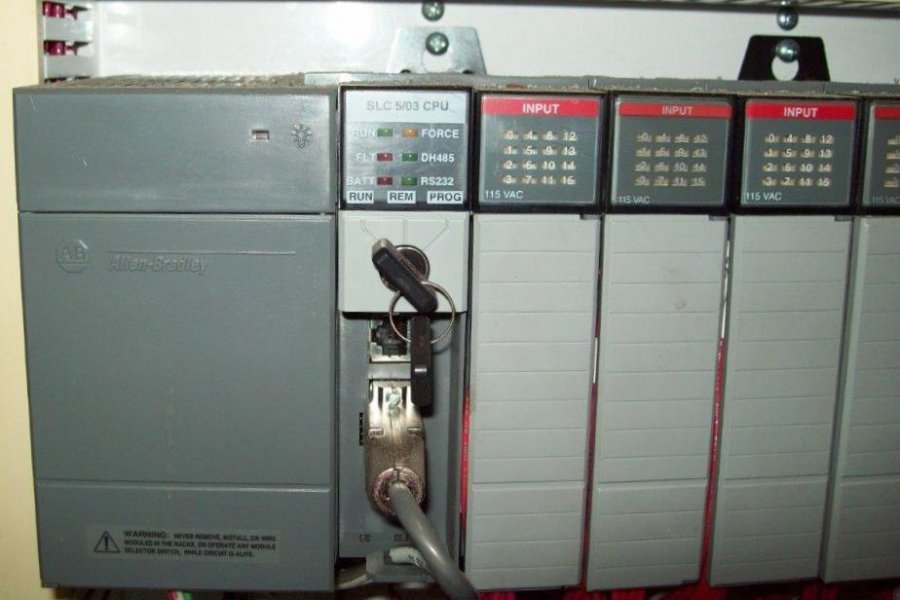

  • Allen Bradley SLC 5/03 Solid State Controls With Panelview 550 HMI
  • Trabon Oil Type Automatic Lubrication System

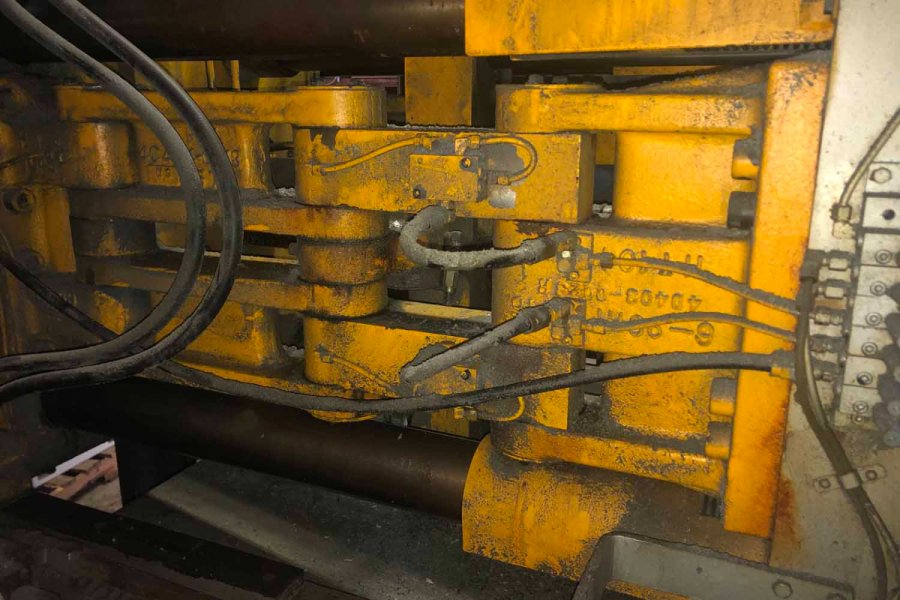

  • Center Platen Hydraulic Ejection System plus Fixed Mechanical Bumper Plate Ejection
  • One (1) Auxiliary Hydraulic Side Core Circuit on Moving Platen
  • Hydraulic Motorized Die Height Automatic System

Item Specifications for DCM-5255

Specifications
Locking Force:
200 tons

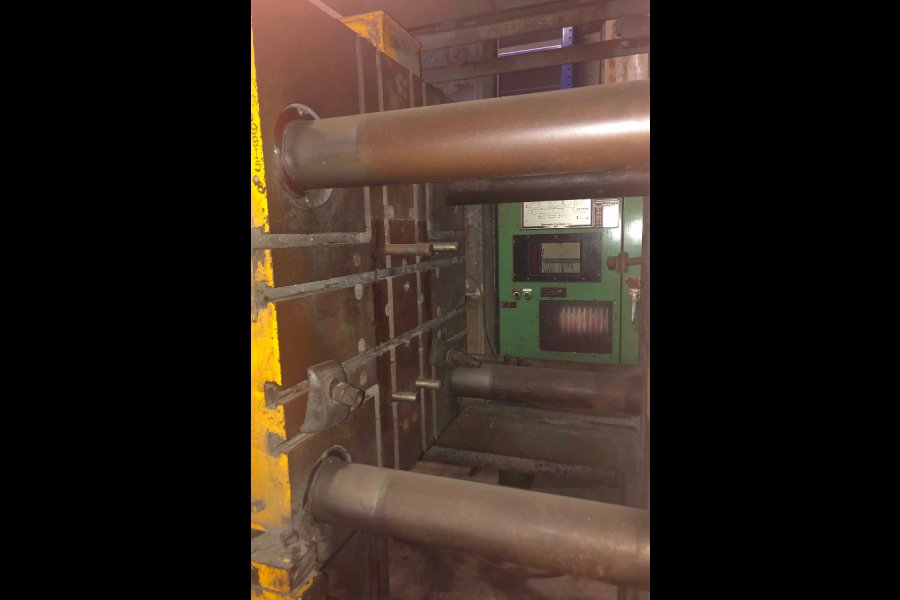

Tie Bar Diameter:
4 inches
Clearance Between Tie Bars (H x V):
22 x 18 inches
Die Thickness (minimum - maximum):
10 - 24 inches
Die Stroke:
14 inches

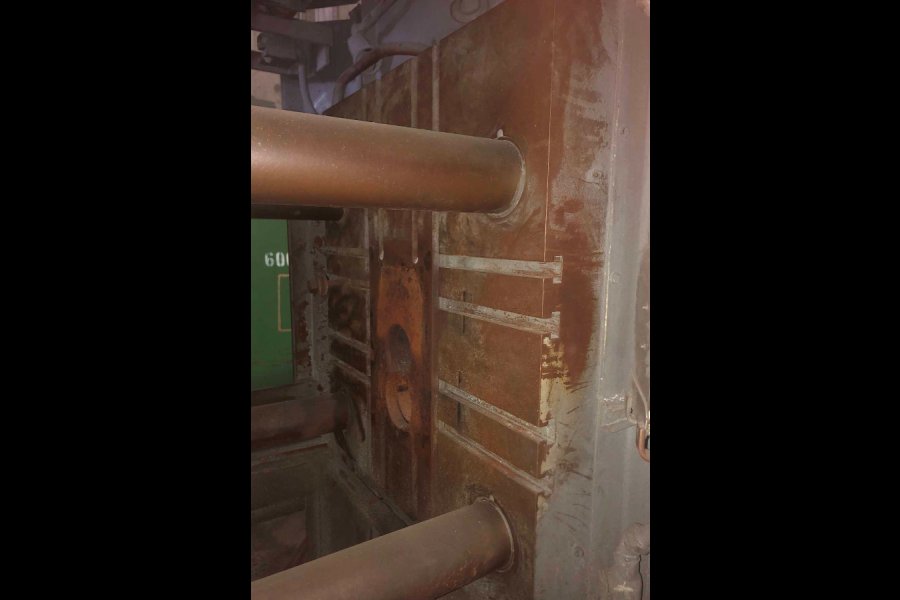

Moving Platen Size (H x V x T):
34 x 35.75 x 6.75 inches

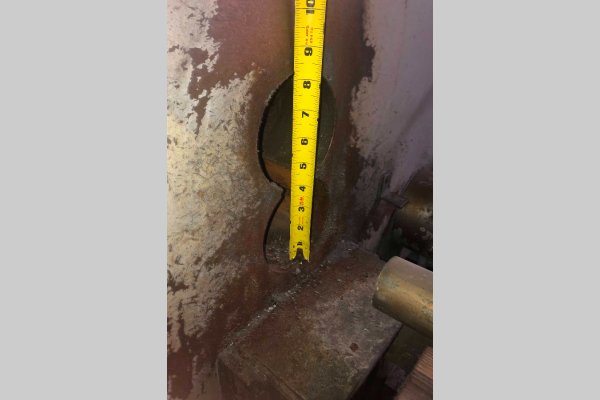

Shot Positions (Removable Insert):
Center to -4 inches Below Center

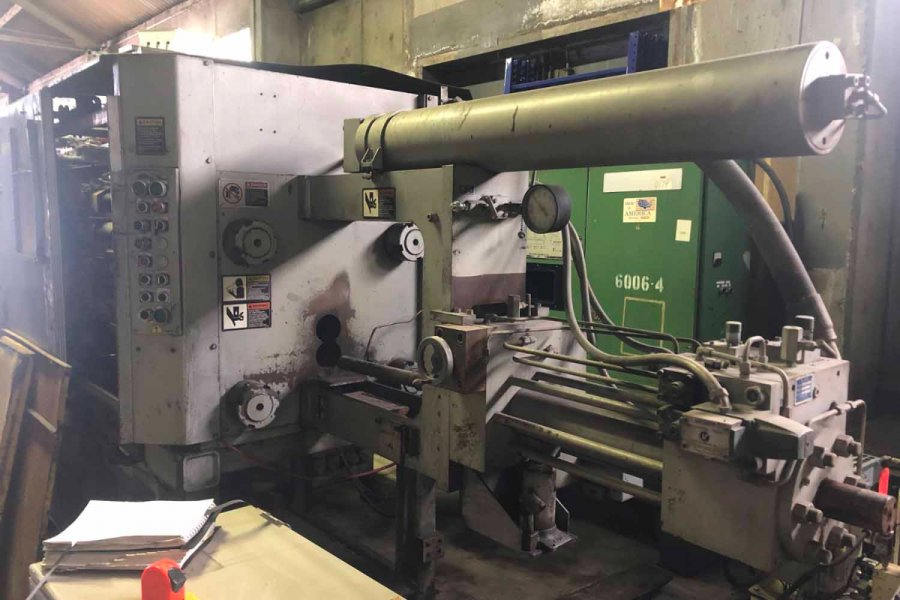

Injection Cylinder Stroke:
16 inches
Ejector Stroke & Force:
3 inches & 6.35 tons
Main Motor Power:
20 HP
Approximate Shipping Weight:
18,500 pounds

Shipping Terms: Ex-works

We offer same day shipping on many of our products with next day delivery available within the United States in many cases. We can supply both domestic and international export packing using ISPM-15 certified materials. We can arrange contractor services for dismantling, rigging, packing and transportation. Within North America we can ship single pieces weighing up to 182,000 pounds/82,727 kg. We have shipped hundreds of die casting machines internationally up to 4,000 tons.

Description

Used, HPM Model U-200-A 200 U.S. Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Safety Ratchet Device, Manual Operator & Helper Safety Door, Allen Bradley SLC 5/03 Solid State Controls With Panelview 550 HMI, Trabon Oil Type Automatic Lubrication System, Center Platen Hydraulic Ejection System plus Fixed Mechanical Bumper Plate Ejection, One (1) Auxiliary Hydraulic Side Core Circuit on Moving Platen, Hydraulic Motorized Die Height Automatic System, Allen Bradley SLC 5/03 Solid State Controls with PanelView550 HMI controls, second Hand, DCM-5255


See jumbo large photos of this HPM U-200-A
