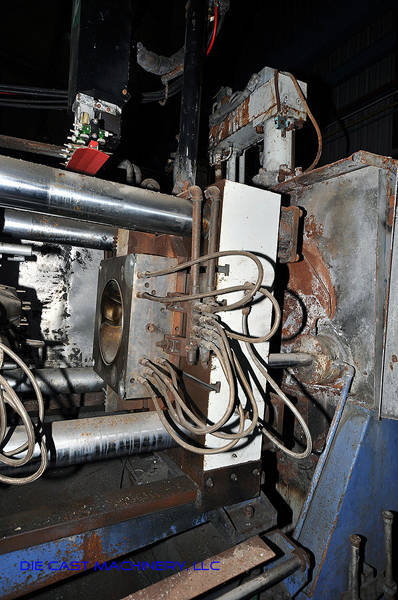

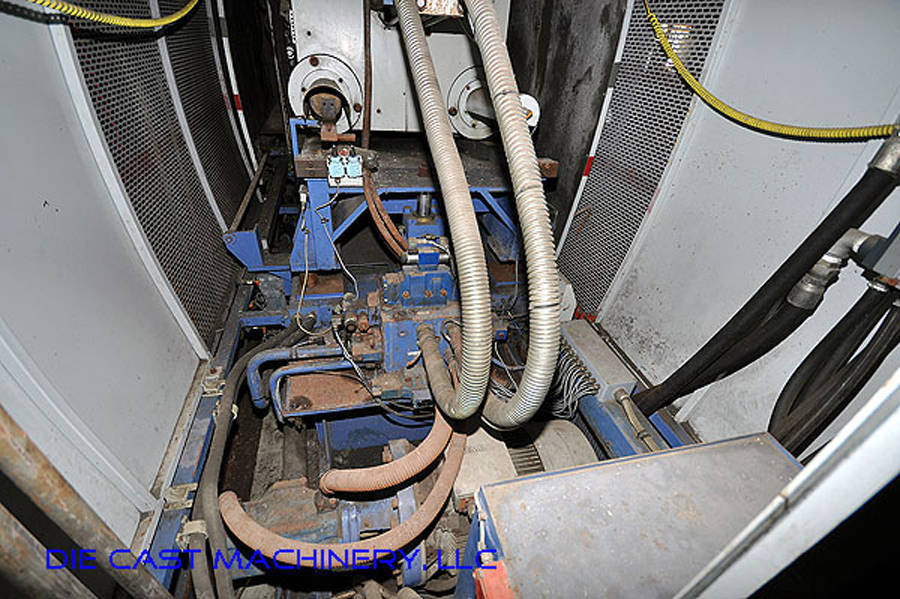

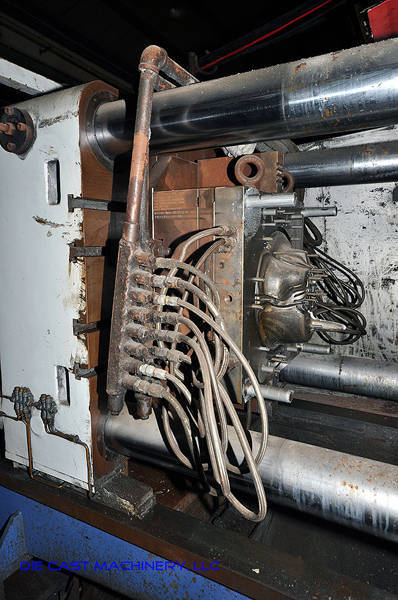

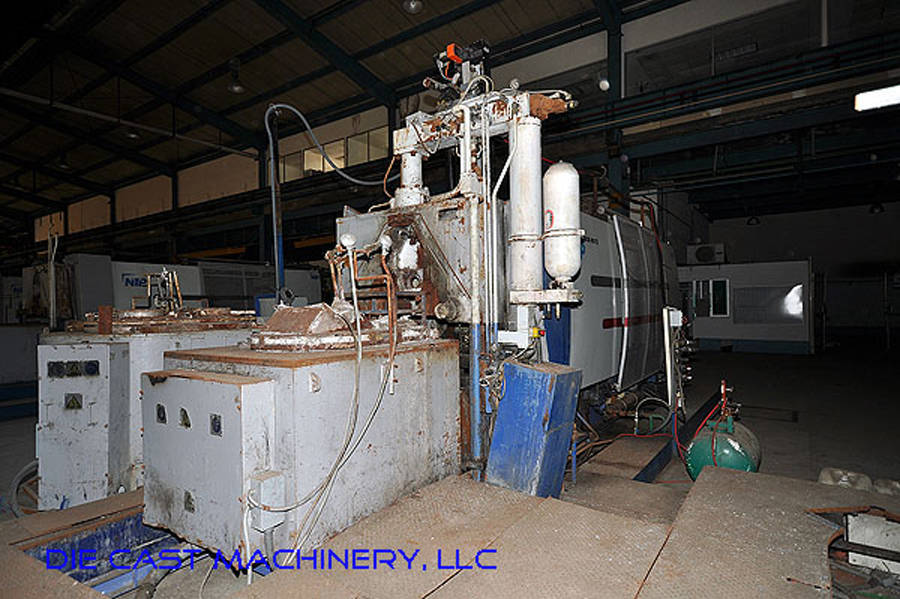

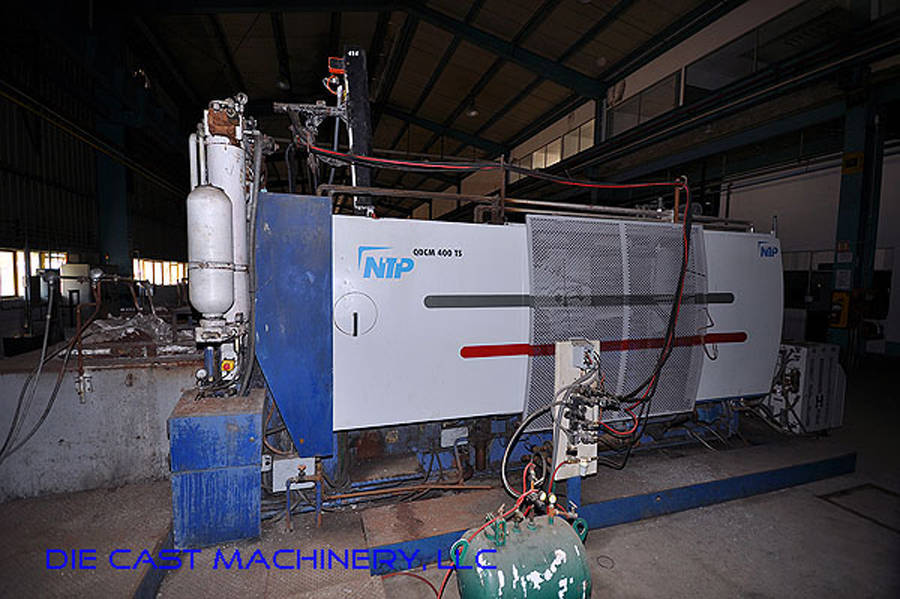

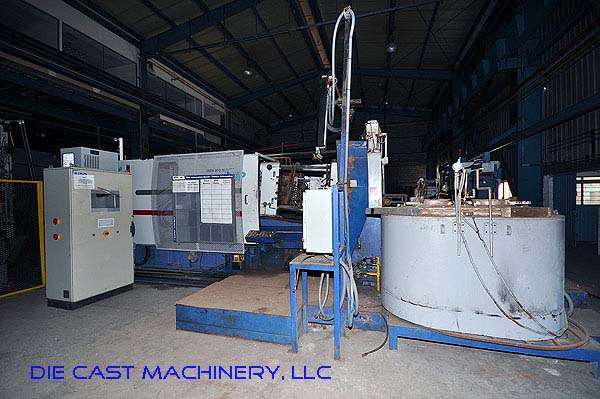

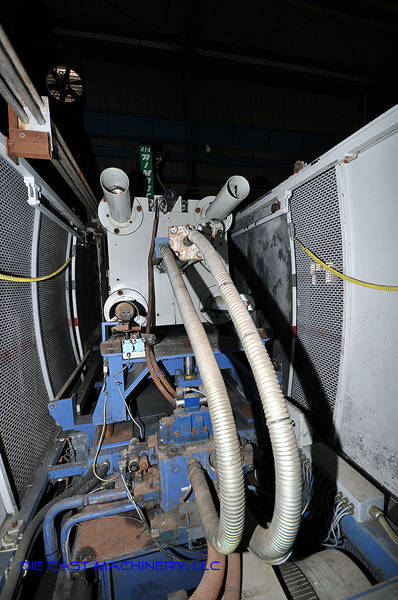

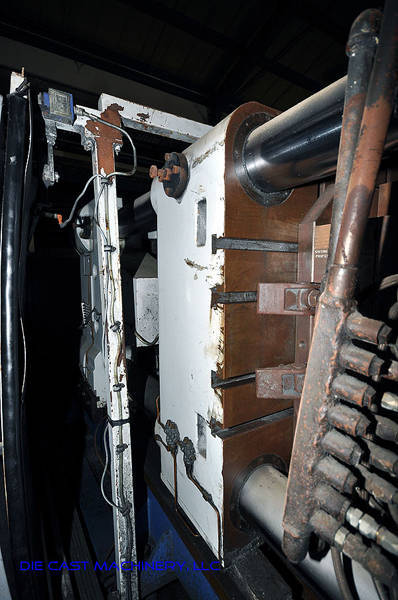

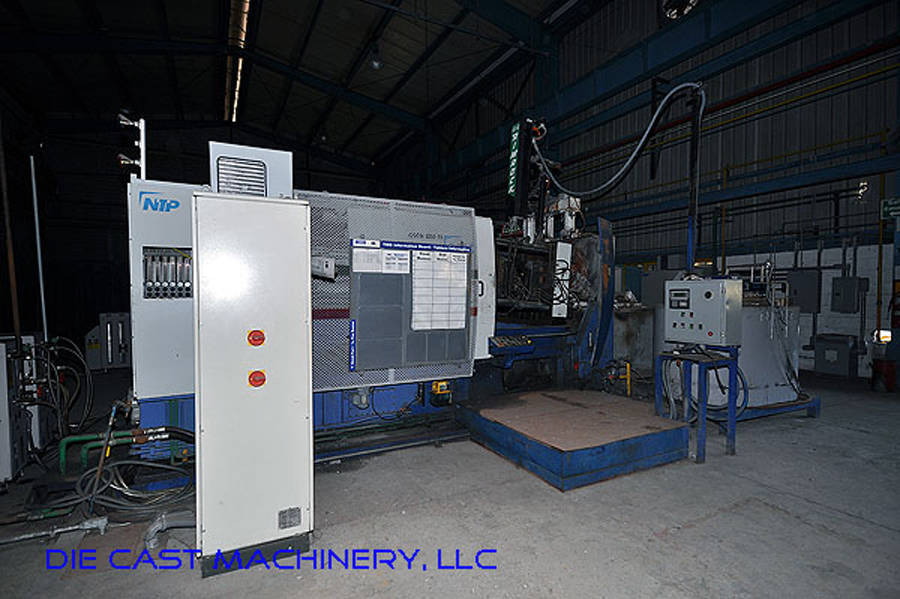

Used NTP Model: WEM H 400 M 4000 kN Horizontal Hot Chamber Magnesium High Pressure Die Casting Machine
Status: Sold - View Available
We offer for sale, subject to availability, prior sale and the terms listed below:
Manufacturer: NTP
Model: WEM H 400 M
Size: 4000 kN
Inventory Number: DCM-2720
Used NTP Model: WEM H 400 M 4000 kN Horizontal Hot Chamber Magnesium High Pressure Die Casting Machine.
Features & Accessories:
- Nine Identical Machines Available
- Siemens S-7 PLC Controls (Solid State, Free Programmable)
- Hydraulic Bumper Plate Ejection
- Electric Motorized Die Height
- Hydraulic Sprue Break
- Fully Proportional Hydraulics
- Was Running Steering Wheel Armatures and Electronic Components
Item Specifications for DCM-2720
| Specifications | |
|---|---|
| Locking Force: |
449.6 tons
|
| Moving Platen Stroke: |
21.6 inches
|
| Platen Size: |
37.8 x 37.8 inches
|
| Distance Between Tie Bars: |
24.4 x 24.4 inches
|
| Tie Bar Diameter: |
5.1 inches
|
| Die Thickness (min - max): |
11.8 - 29.5 inches
|
| Injection Force: |
20.4 tons
|
| Injection Stroke: |
9 inches
|
| Plunger Diameters: |
3.1, 3.9, 4.3 inches
|
| Machine Weight: |
38,580 lbs
|
| Machine Size: |
24.6 x 7.8 x 9.8 feet
|
Description
Used, NTP Model WEM H 400 M 4000 kN Horizontal Hot Chamber Magnesium High Pressure Die Casting Machine For_Sale, Features Include: Siemens S-7 PLC Controls (Solid State, Free Programmable), Hydraulic Bumper Plate Ejection, Electric Motorized Die Height, Hydraulic Sprue Break, Fully Proportional Hydraulics, Was Running Steering Wheel Armatures and Electronic Components, Siemens S-7 PLC controls, second Hand, DCM-2720
