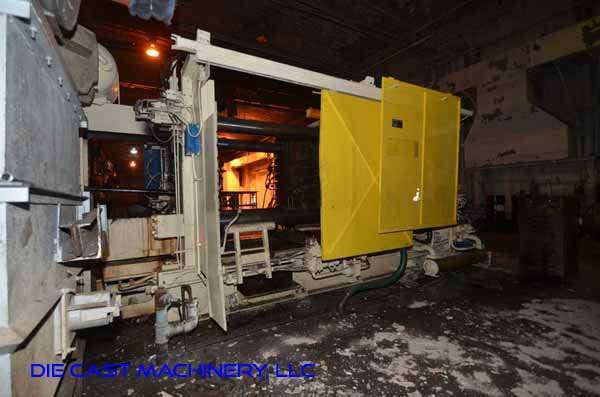

Used Prince Model: 940 CCA 950 Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
Status: Sold - View Available
We offer for sale, subject to availability, prior sale and the terms listed below:
Manufacturer: Prince
Model: 940 CCA
Size: 950 Tons
Inventory Number: DCM-3347

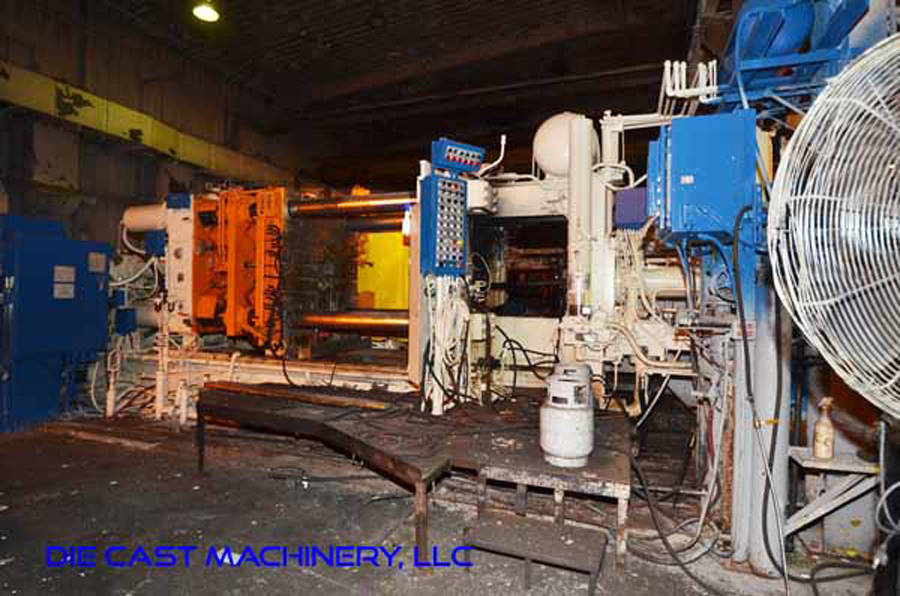

Used Prince Model: 940 CCA 950 Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine.
Features & Accessories:

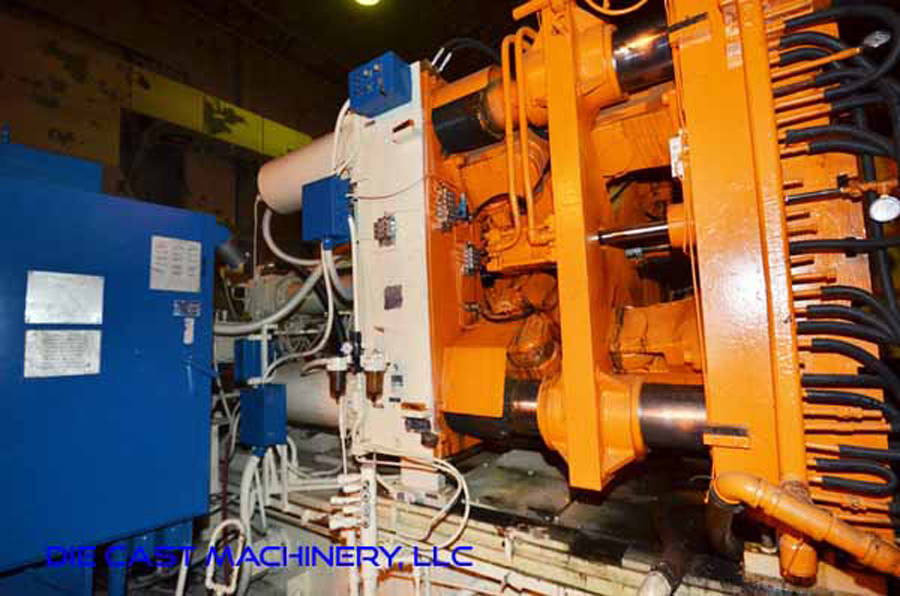

- Prince Automatic Tie Bar Pulling System - Top Helper Side Tie Bar

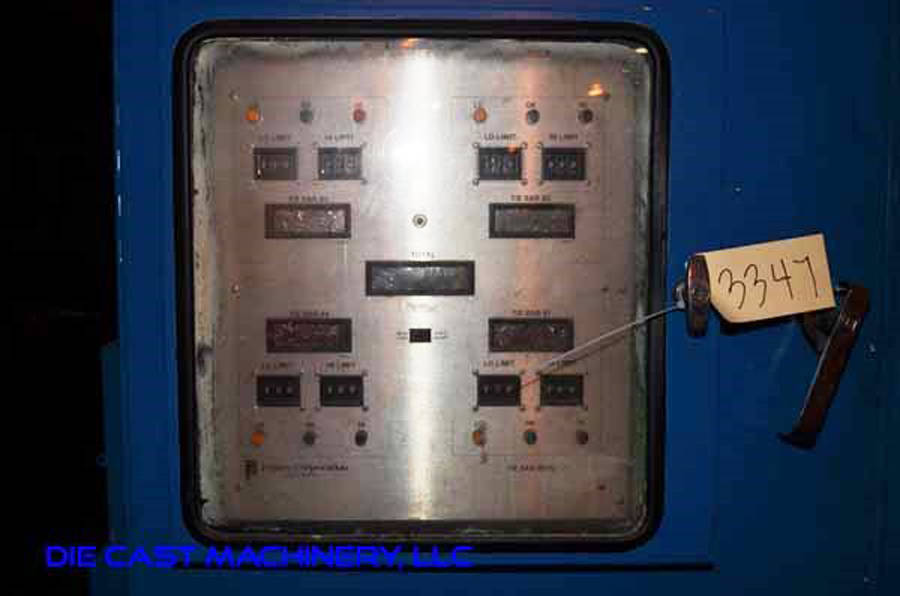

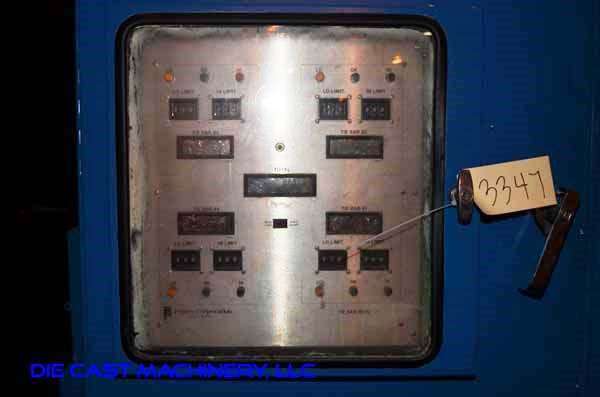

- Prince Individual Die Bar Tonnage Adjustment System

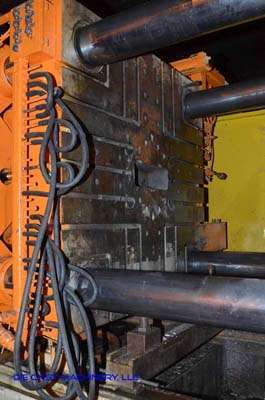

- 4 Core Circuits on Moving Platen - 1 on Fixed Platen

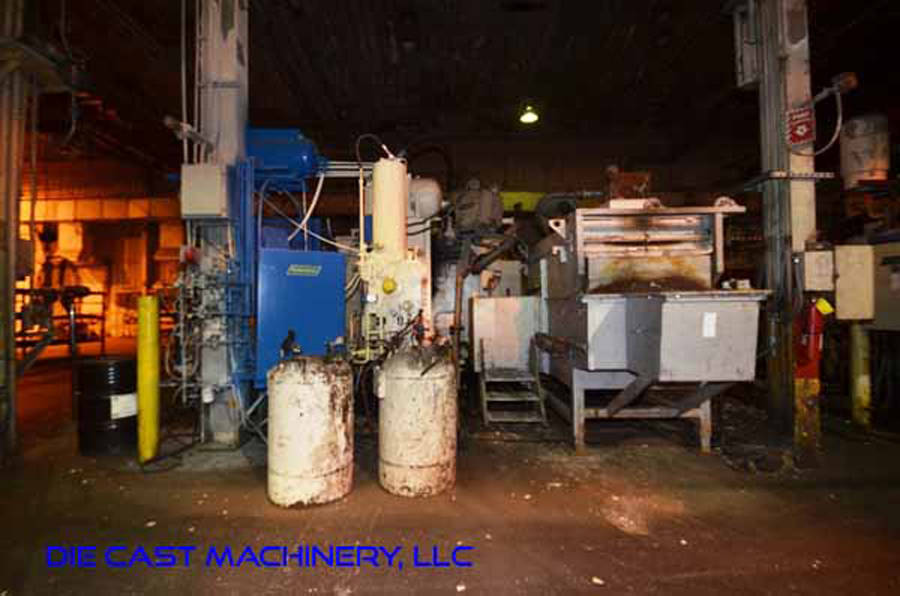

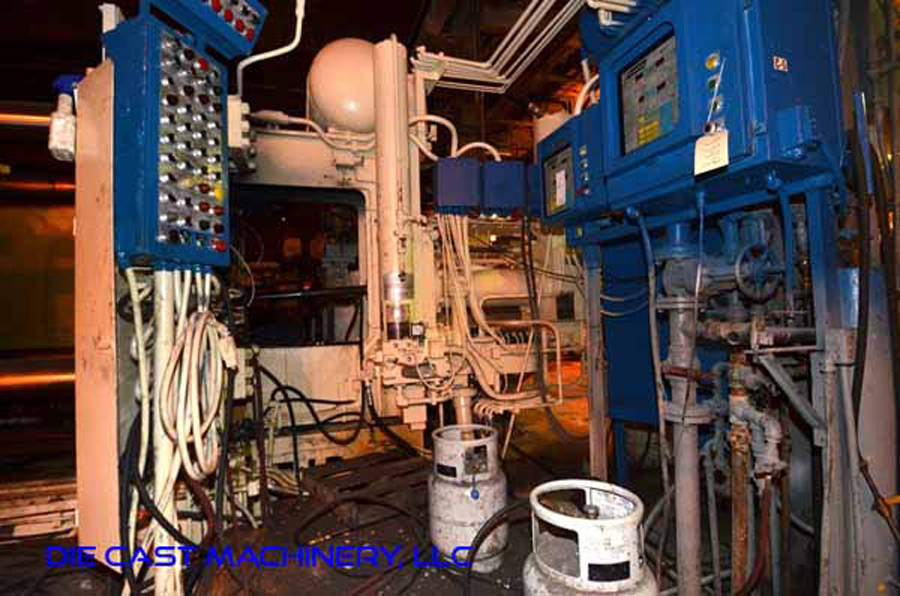

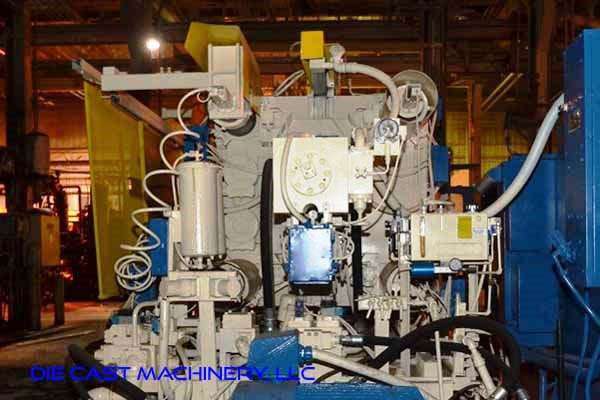

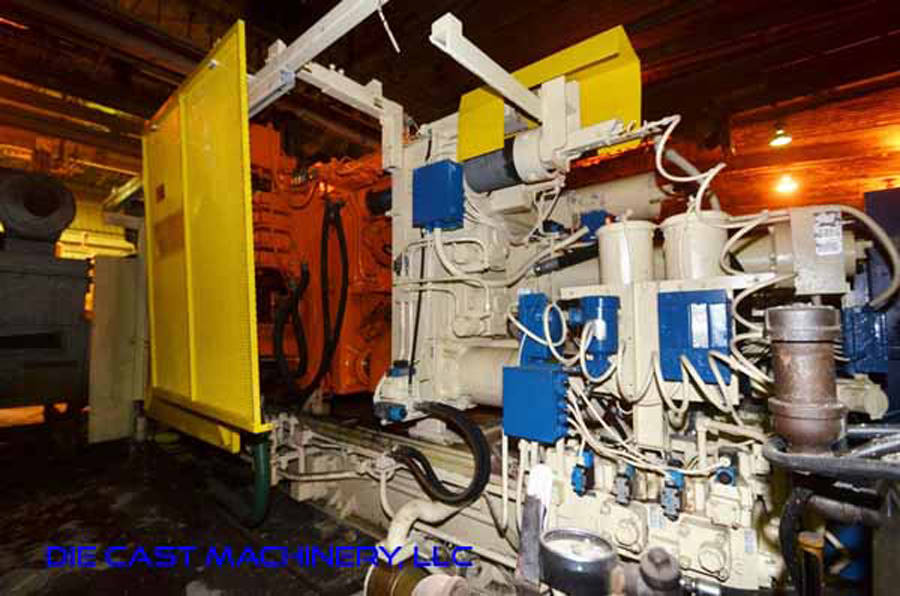

- Prince Binary Shot Control System with close coupled hydraulic Accumulators

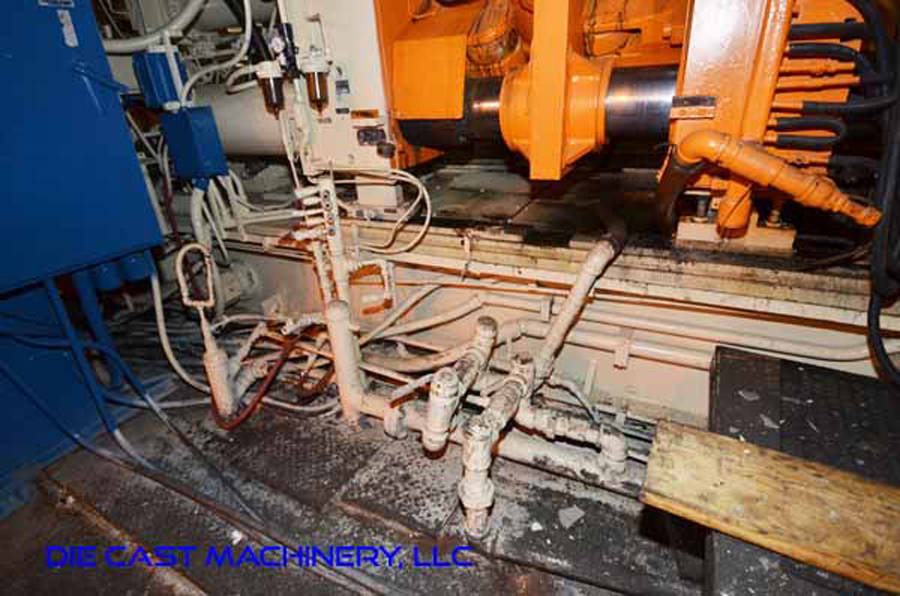

- Twin Cylinder Hydraulic Bumper Plate Ejection System
- Insert For Shot Position Center to -12 inches
Item Specifications for DCM-3347
| Specifications | |
|---|---|
| Rated Tonage |
950 tons
|
| Tie Bar Diameter |
8 inches
|
| Clearance Between Tie bars |
40 inches
|

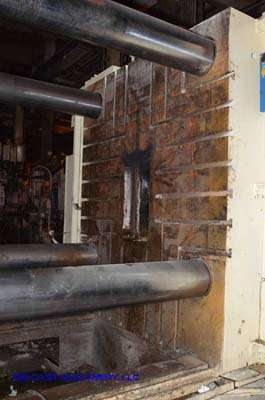

| Front Platen Size (T x W x H) |
14.75 x 64 x 74 inches
|
| Moving Platen Size (T x W x H) |
13.75 x 64 x 64 inches
|
| Die Thickness (min. - max.) |
22 - 42 inches
|
| Die Stroke |
24.5 inches
|
| Ejection Stroke |
6 inches
|
| Ejection Force |
21.5 tons
|

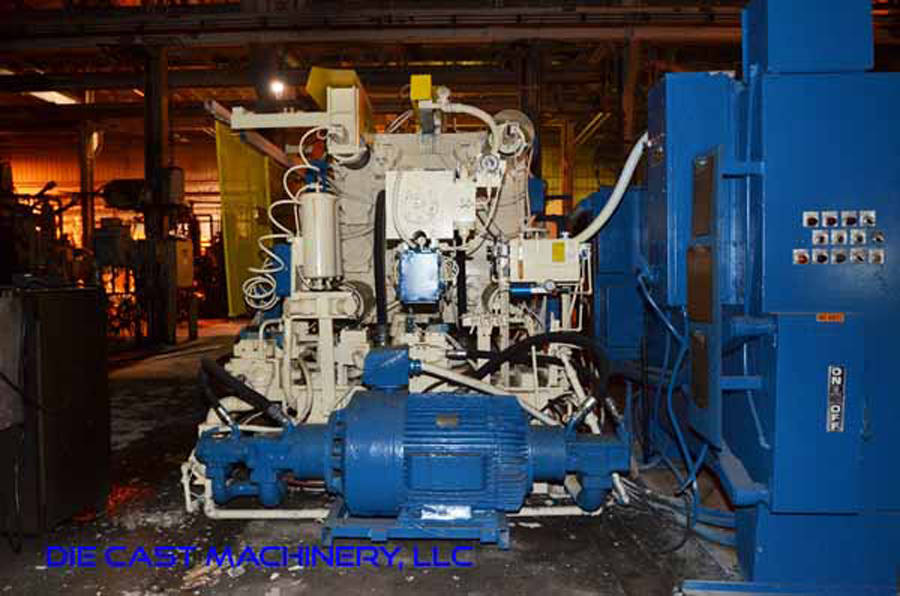

| Motor Size |
100 hp
|
| Machine Size (L x W x H) |
29.9 x 8.6 x 11 feet
|
| Machine Weight |
115,000 pounds
|
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
| RDC 4000 pounds Low Energy High Efficiency Natural Gas Heated Aluminum Holding Furnace | |
| Rimrock 305-70 Inch Multi-Link Automatic Ladle for Aluminum and Brass Die Casting and Foundry Operations |
Description

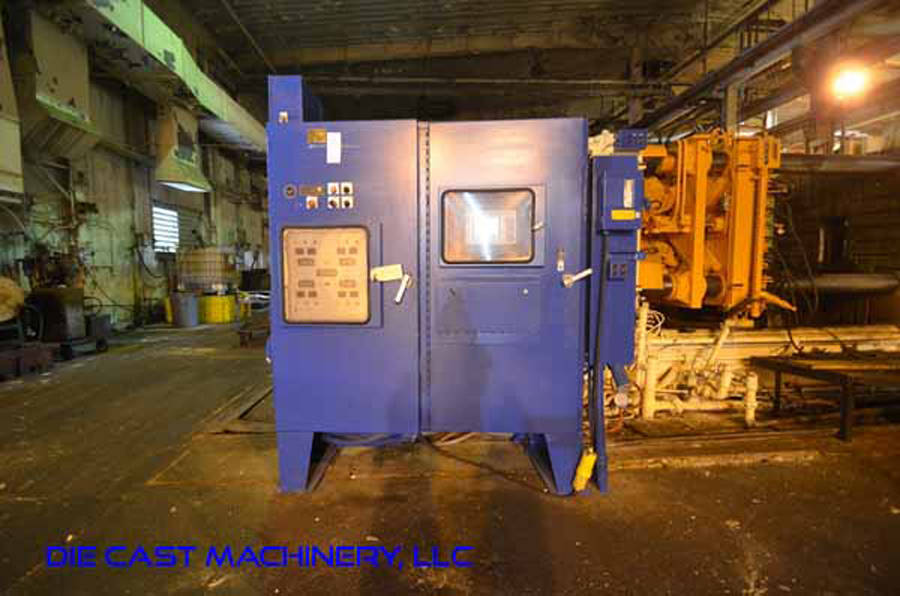

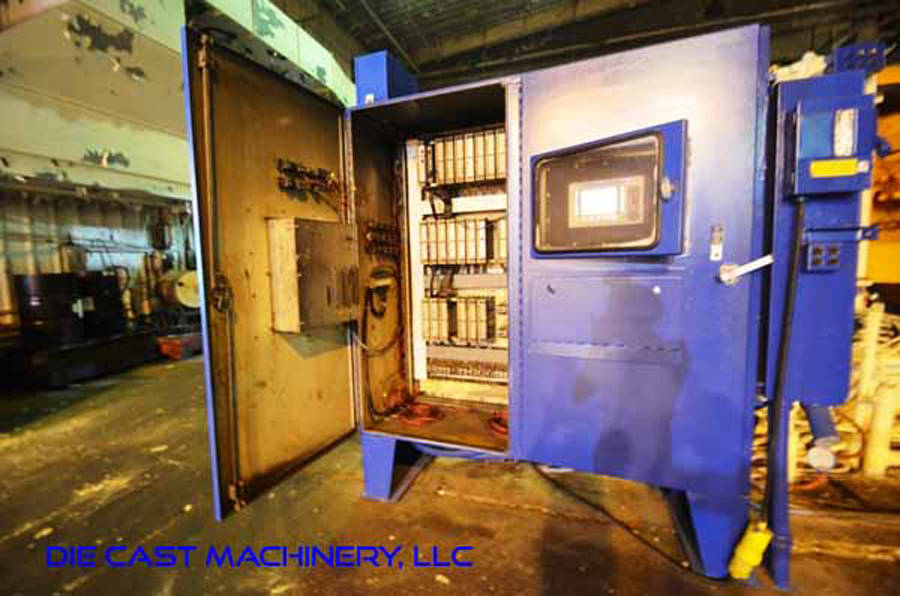

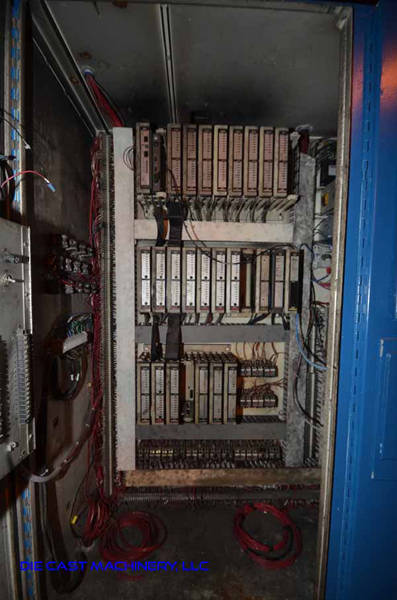

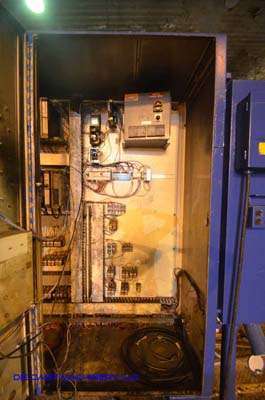

Used, Prince Model 940 CCA 950 Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Prince Automatic Tie Bar Pulling System - Top Helper Side Tie Bar, Prince Individual Die Bar Tonnage Adjustment System, 4 Core Circuits on Moving Platen - 1 on Fixed Platen, Prince Binary Shot Control System with close coupled hydraulic Accumulators, Twin Cylinder Hydraulic Bumper Plate Ejection System, Insert For Shot Position Center to -12 inches, Modicon Solid State PLC controls, second Hand, DCM-3347
