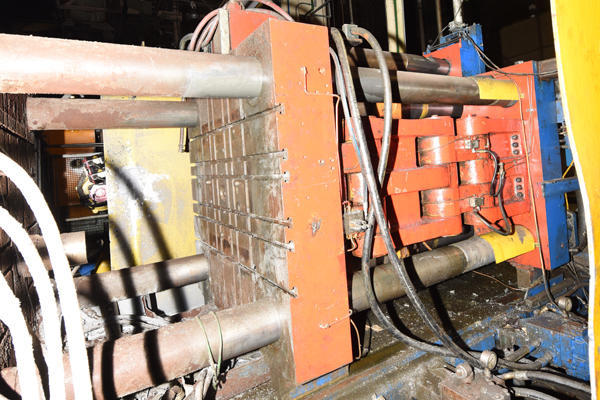

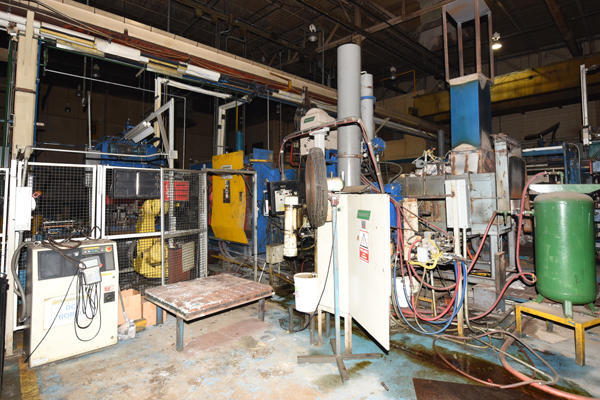

Used HPM Model: II-600-A 600 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
Status: Sold - View Available
We offer for sale, subject to availability, prior sale and the terms listed below:
Manufacturer: HPM
Model: II-600-A
Size: 600 Ton
Inventory Number: DCM-4200
Used HPM Model: II-600-A 600 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine.
Features & Accessories:

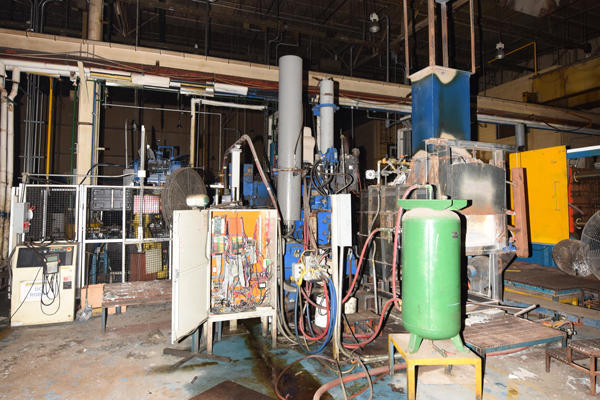

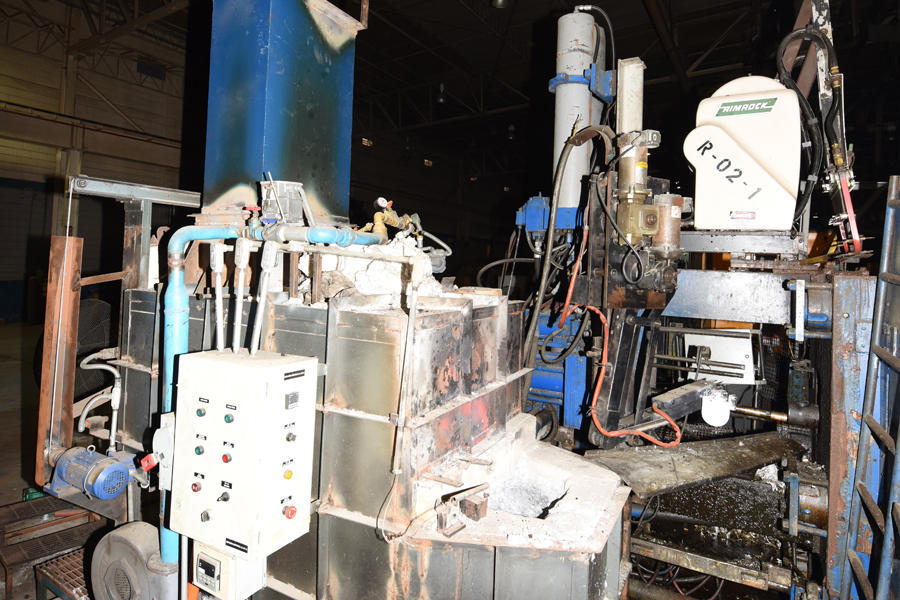

- Machine includes: Wollin sprayer, Rimrock ladle, Rimrock Reciprocator, Fanuc R-2000IA robot
- Hydraulic Motorized Die Height Adjustment
- Air Safety Ratchet
- Hydraulic Bumper Plate Ejection System
- Trabon Oil Type Automatic Linkage Lubrication System
- One Core Circuits on Moving Platen
Item Specifications for DCM-4200
| Specifications | |
|---|---|
| Locking Force: |
600 tons
|
| Tie Bar Diameter: |
6 inches
|
| Clearance Between Tie Bars (H x V): |
29 x 29 inches
|
| Die Thickness (minimum - maximum): |
14 - 36 inches
|
| Die Stroke (minimum - maximum): |
12 - 18 inches
|

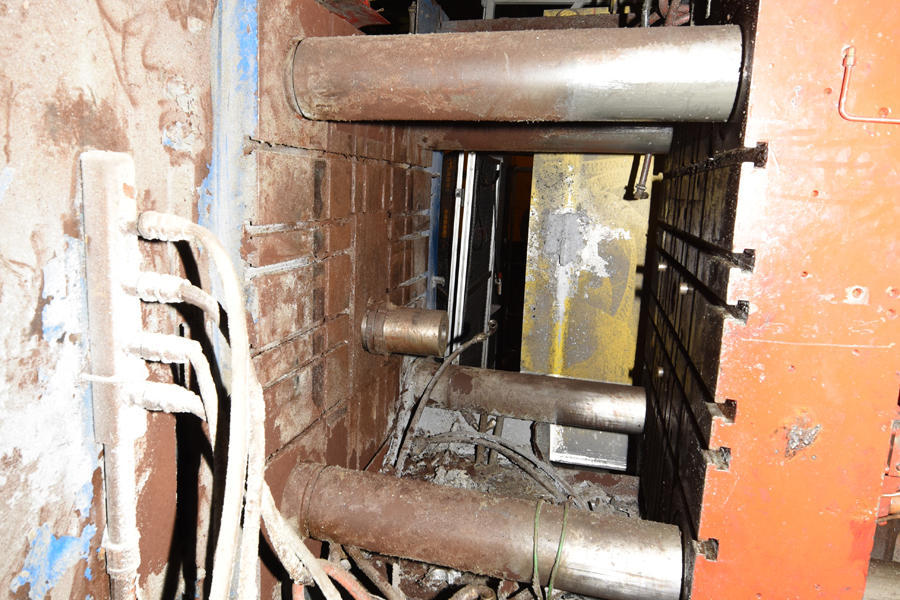

| Moving Platen Size: |
48 x 48 inches
|
| Shot Positions: |
Center, 6 & 9 inches
|
| Shot Cylinder Stroke: |
19 - 23 inches
|
| Shot Intensification: |
Multiplier Cylinder
|
| Power: |
480/3/60
|
| Machine Size: |
7.1 x 26.2 feet
|
| Machine Weight: |
57,000 pounds
|
Description
Used, HPM Model II-600-A 600 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Hydraulic Motorized Die Height Adjustment, Air Safety Ratchet, Hydraulic Bumper Plate Ejection System, Trabon Oil Type Automatic Linkage Lubrication System, One Core Circuits on Moving Platen Allen Bradley SLC 5/03 Solid State Programable controls, second Hand, DCM-4200
